Clamping & Locating Angle

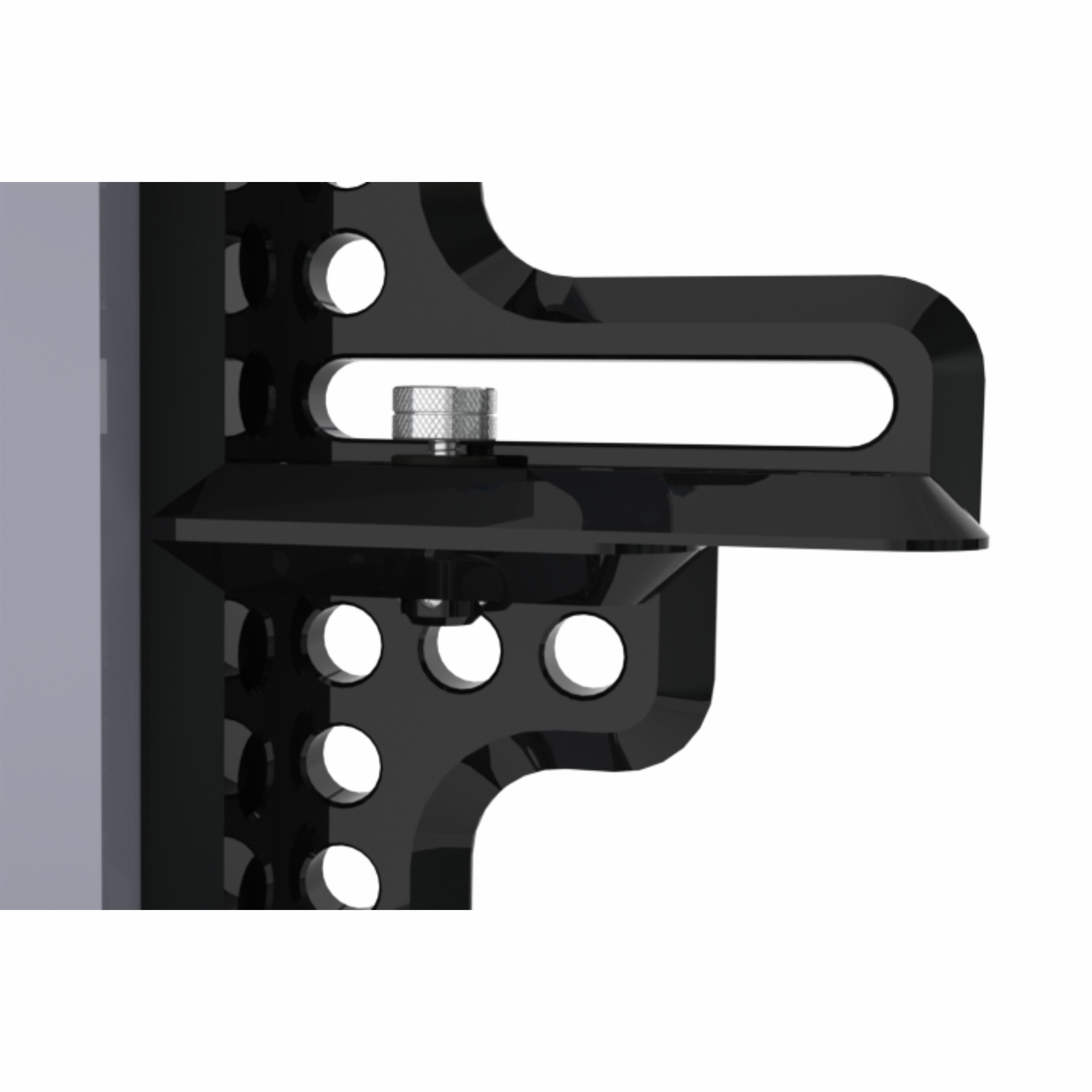

Versatile Four-Face FIXTO Clamping & Locating Angle feature a total of 26 mounting holes over 3 surfaces for unlimited fixturing options. Mounting holes can be used to stop, locate, clamp, or square up stock at 90°. Available in left and right facing models, squares have a slim, space-saving profile and extra long mounting slot.

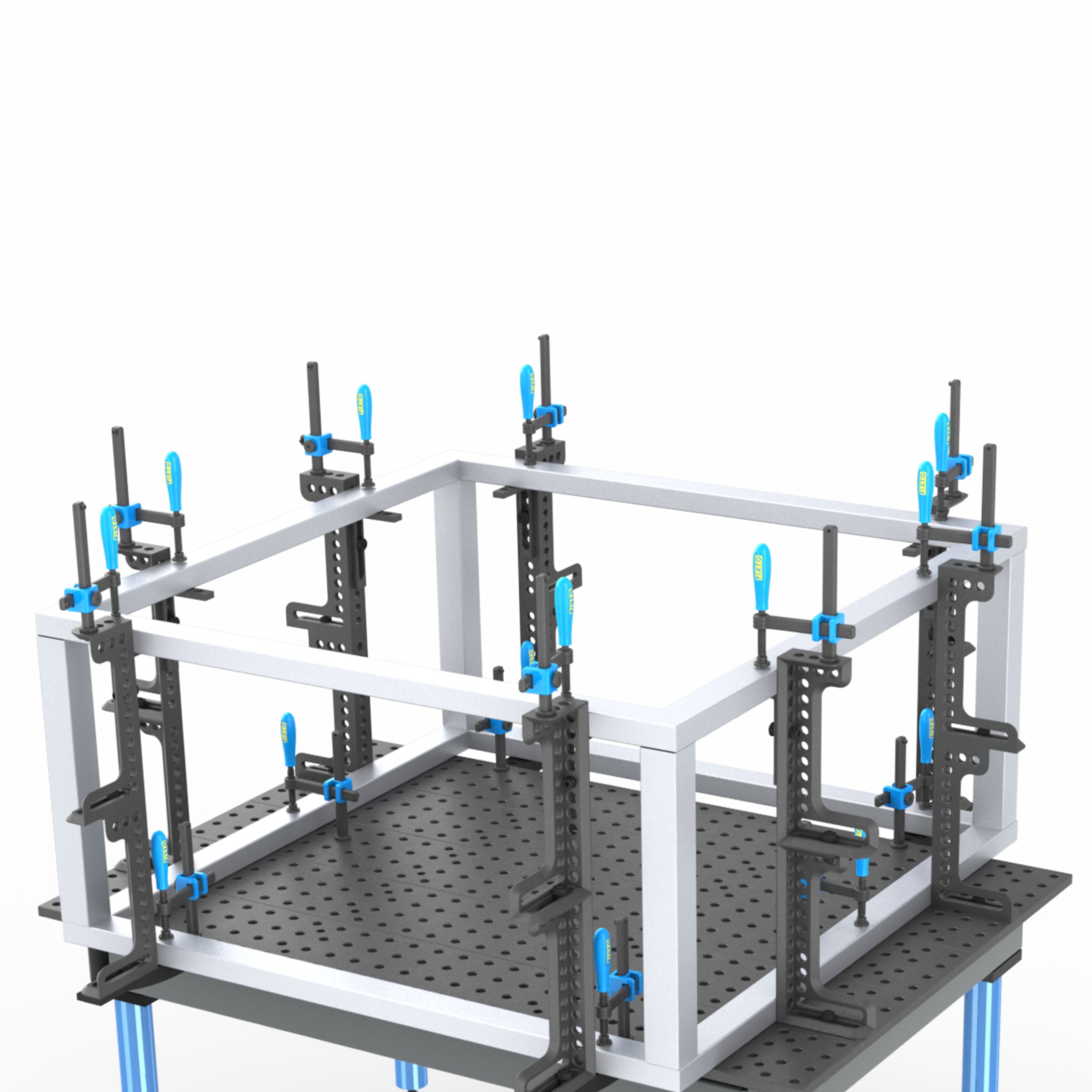

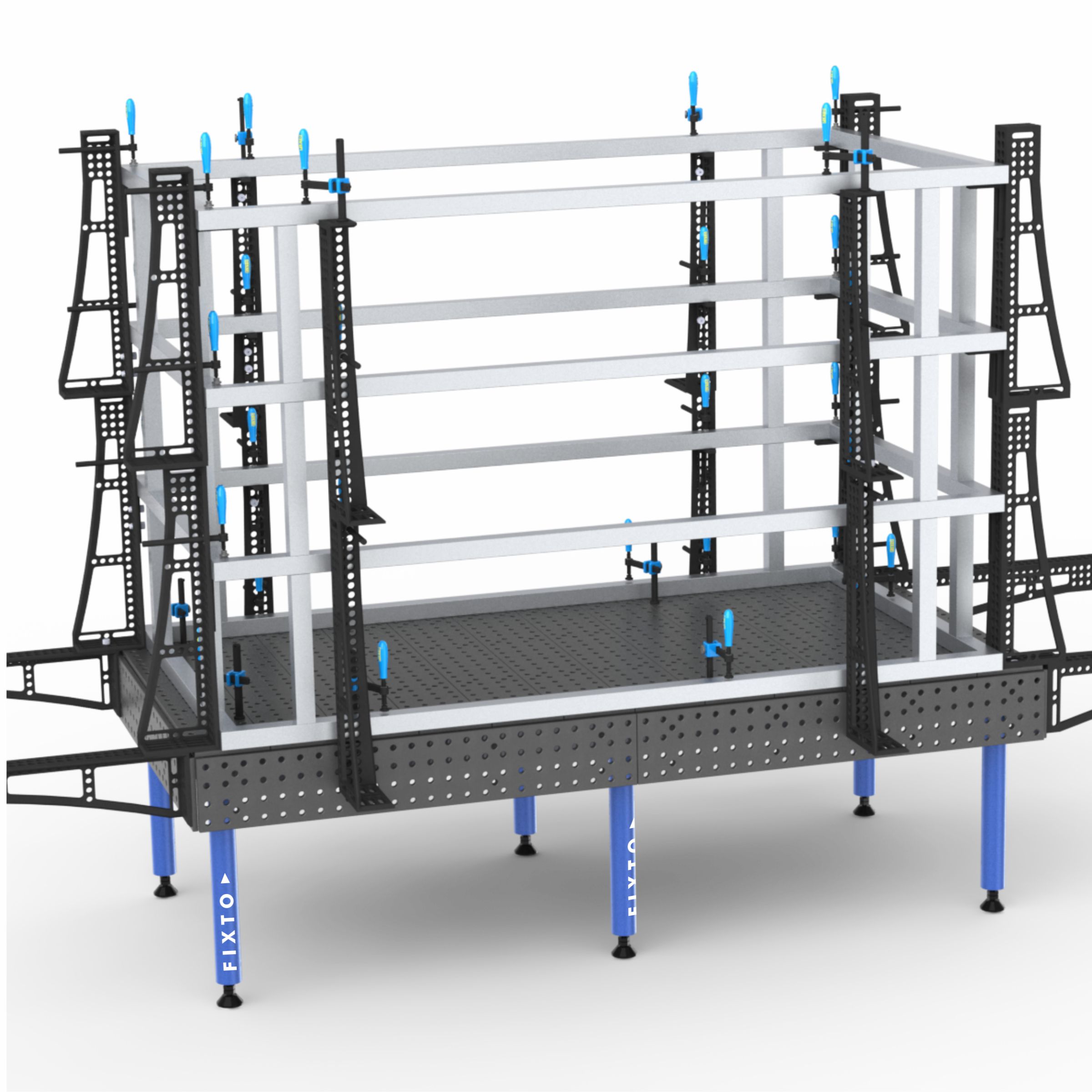

The FIXTO Fixture Clamp is a great tool for welders. One of the biggest difficulty that welders face is positioning the items that need to be welded. That is where the FIXTO Fixture Clamps comes in use. The Fixture Clamps ensure that the items to be welded remain in position with the help of FIXTO welding table which gives highly accurate surface and fixture hole combination, also FIXTO welding table and fixture clamp helps to reduce and control the distortion of the job. Welder can easily make production with FIXTO welding table and fixture clamps to improve the quality of welding job.

Clamping & Locating Angle
Features:
  • Mounting holes can be used to stop, locate, clamp, or square up stock at 90°.

Models

Add to My Fixture Model No Description Size Holes
BRAB300L Left Angle- 2 Slots 150 x 50 x 300 26
BRAB300R Right Angle- 2 Slots 150 x 50 x 300 26
