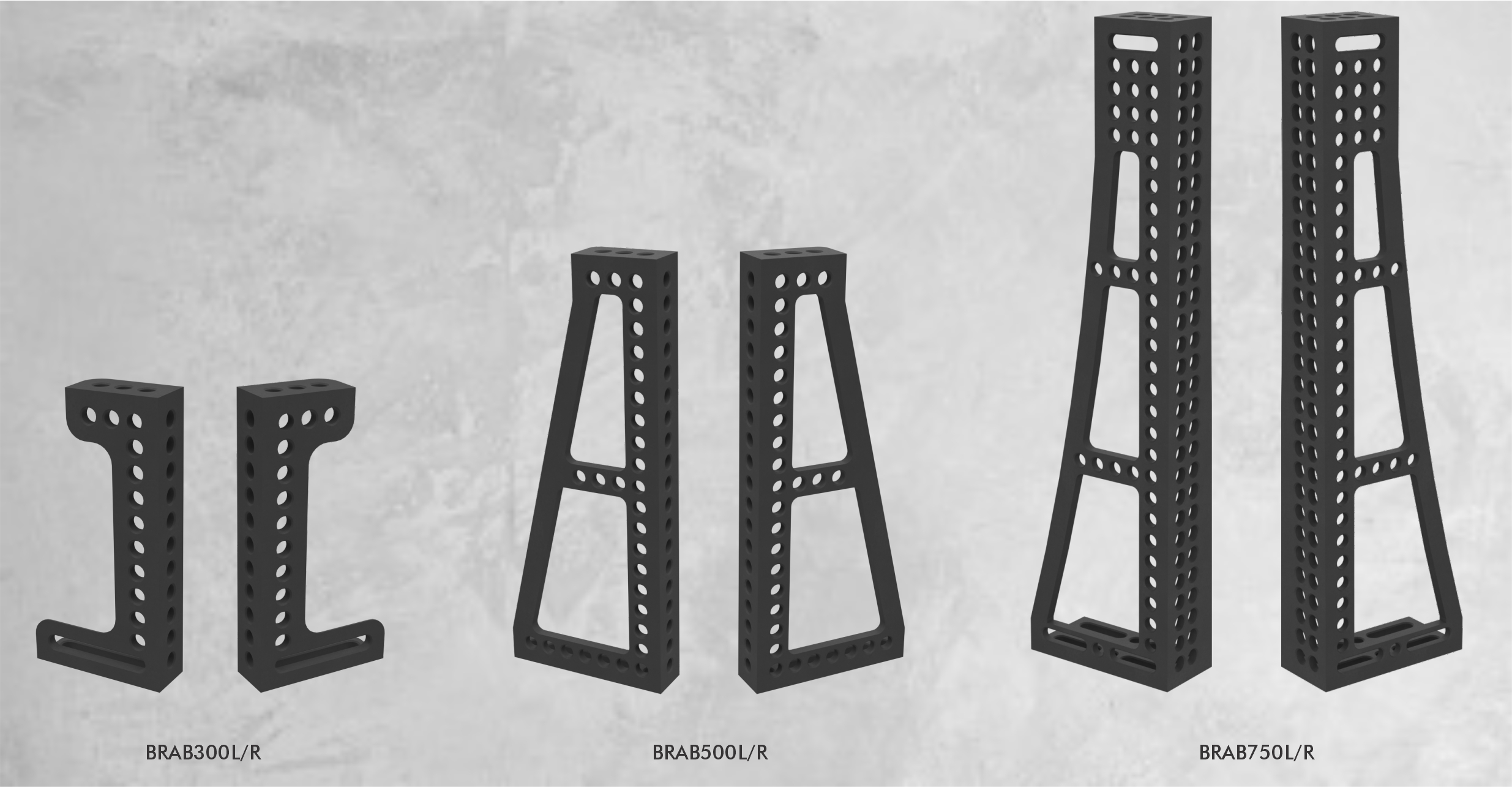

Clamping And Locating Angles

Clamping & Locating Angles are manufactured from high quality ductile cast iron and specifically designed to handle heavy parts.













They serve equally well for stopping large parts, serving as table extensions, or building vertically. Cut outs are optimized for lighter weight and easier handling, while the hardening process makes them even stronger and more durable. New clamping & locating angles with slots provide more ways to create a fixture.
The FIXTO Fixture Clamp is a great tool for welders. One of the biggest difficulty that welders face is positioning the items that need to be welded. That is where the FIXTO Fixture Clamps comes in use. The Fixture Clamps ensure that the items to be welded remain in position with the help of FIXTO welding table which gives highly accurate surface and fixture hole combination, also FIXTO welding table and fixture clamp helps to reduce and control the distortion of the job. Welder can easily make production with FIXTO welding table and fixture clamps to improve the quality of welding job.

Clamping And Locating Angles
Features:
  • Can be adjusted flexibly for locating workpieces
  • Can locate large workpieces
  • be laid on the top surface of sides of the fixture
  • high durability
  • sustain the workpiece at right angles
  • Made of cast
  • Facilitate clamping and fixing of workpieces
  • Extend the length of working table

Models

Add to My Fixture Model No Length Width Height Thick
BRAB750 R 200 100 750 12
BRAB750 L 200 100 750 12

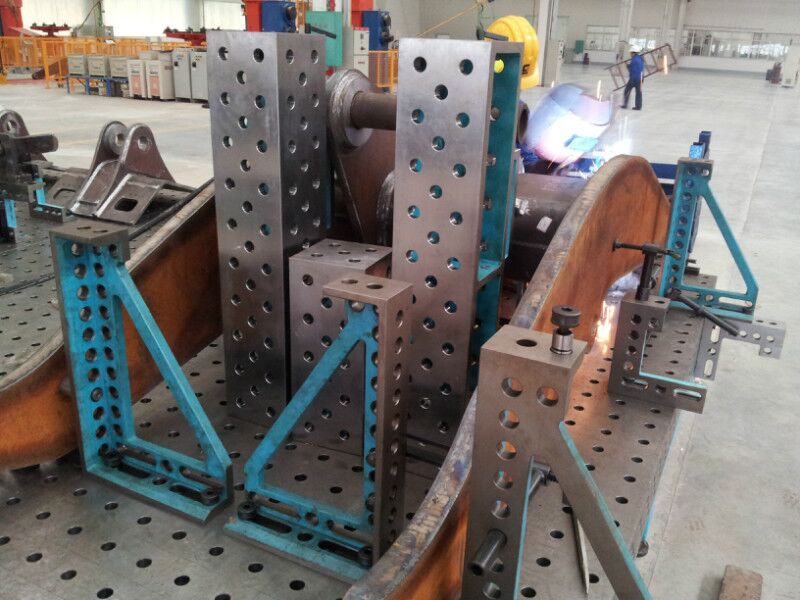

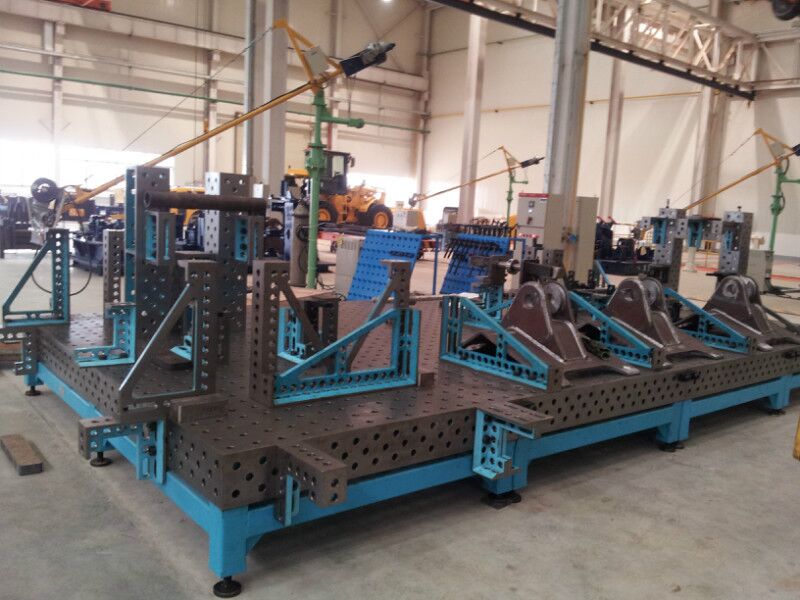

Gallery
